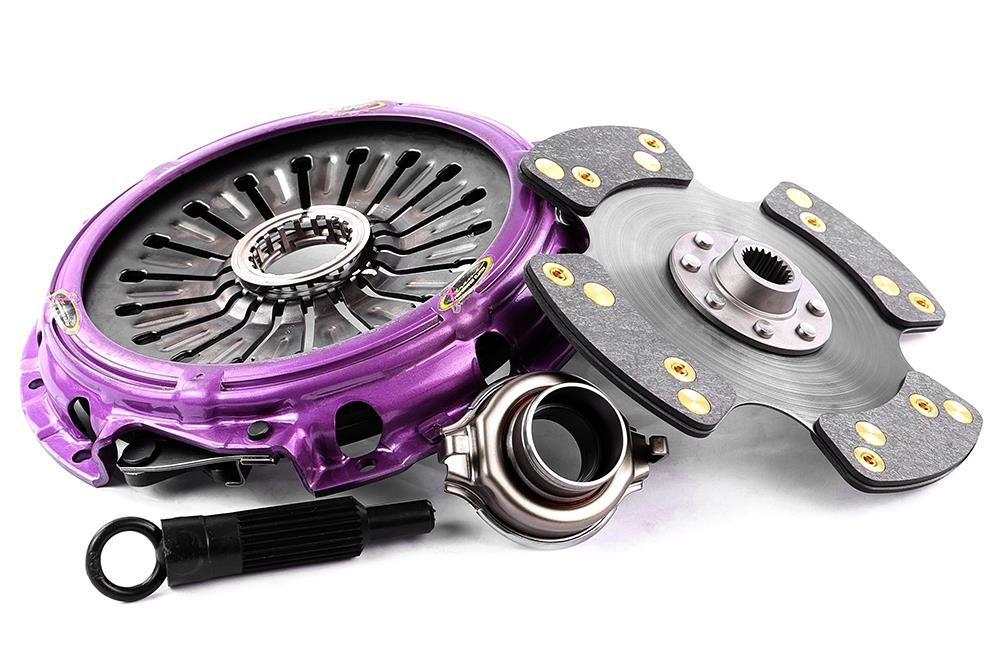

Stage 3 Clutch Kits Carbon Race Series

Used by some of the most powerful time attack and drift cars in the world, the Xtreme Clutch single plate carbon clutch provides exceptional heat capacity for high horsepower vehicles.

Recommended for: Xtreme powered vehicles requiring improved modulation

• Clutch Disc Diameter (mm)
  240
• Clutch Disc Spline Count
  23
• Clutch Disc Spline Diameter (mm)
  26.1
• Torque (Nm)
  1040
• Flywheel Step
  0
• Design
  Single Plate
• Stage
  Stage 3
• Clamp Load
  1650Kg
• Recommended for
  Motorsport - Stage 3
• Ring Gear Tooth count
• Additional infotmation
• Weight [KG]:
  8.06
