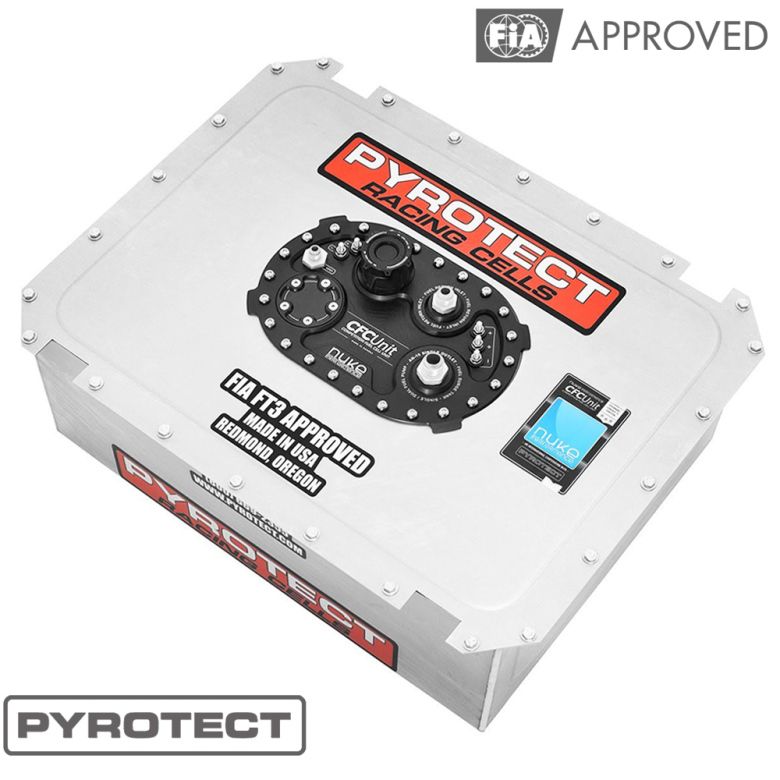

Pyrotect PyroCell Elite fuel cells are lightweight FIA / FT3 Approved for all major racing and motorsports associations.
Ultra-durable double-coated urethane fabric bladder delivered with the Nuke Performance - drop-in fuel pump hanger with integrated surge tank functionality. The most efficient and lightweight solution on the market, used by worldwide motorsports teams and safe for all alcoholic fuels such as ethanol.

Extremely lightweight fuel cell
FIA Approved for all types of motorsports
Safe for all types of fuel, including alcoholic fuels
Urethane fabric bladder, for motorsports use
Available in several sizes, for your every need
Integrated 2 liter Fuel Surge Tank function
Fits single or dual high-pressure fuel pumps
AN-10 ORB single outlet / AN-8 ORB return

The high-quality PyroCell Elite fuel cells from Pyrotect is the top of the line fuel cells made out of ultra-durable double-coated urethane fabric with internal foam baffling and with the integrated CFC Unit from Nuke Performance, which eliminates the need for an external surge tank which is needed when running a traditional fuel cell setup, it is a perfect use for fuel injected systems. The fuel cell is safe for all types of fuels, including ethanol, and methanol.

FIA certification :

FIA certified fuel cells have a 5 year life, and in some countries, they can be recertified for a further 2 years up to a maximum of 7 years from the date of manufacture. Fuel Cells must be sent back to Pyrotect for recertification to take place. To comply with FIA regulations, the fuel cell bladder must be installed within the included aluminum container. The dimensions listed on our website is with the included container.

Custom designed Pyrotect fuel cells :

For custom designed Pyrotect fuel cells, contact us directly for a quote for a custom made fuel cell with an integrated Nuke Performance CFC Unit.

Measurements :

The bolt flange around the top lid is additional 25.4mm (1,00") per side, add this to listed measurements. Custom "shoebox" design is optional, contact us for custom order.

6.25 gallon (23.65 liter) fuel cell :

Length : 406 mm / Height : 219 mm / Width : 308 mm
Length : 16.0" / Height : 8.62" / Width : 12.12"

8 gallon (30.28 liter) fuel cell :

Length : 527 mm / Height : 219 mm / Width : 308 mm
Length : 20.75" / Height : 8.62" / Width : 12.12"

10 gallon (37.85 liter) fuel cell :

Length : 620 mm / Height : 257 mm / Width : 257 mm
Length : 25.62" / Height : 10.12" / Width : 10.12"

12 gallon (45.42 liter) fuel cell :

Length : 527 mm / Height : 241 mm / Width : 454 mm
Length : 20.75" / Height : 9.5" / Width : 17.87"

15 gallon (56.78 liter) fuel cell :

Length : 622 mm / Height : 241 mm / Width : 450 mm
Length : 24.5" / Height : 9.5" / Width : 17.75"

17 gallon (64.35 liter) fuel cell :

Length : 511 mm / Height : 324 mm / Width : 435 mm
Length : 20.12" / Height : 12.75" / Width : 17.12"

18 gallon (68.13 liter) fuel cell :

Length : 711 mm / Height : 251 mm / Width : 435 mm
Length : 28" / Height : 9.87" / Width : 17.12"

22 gallon (83.27 liter) fuel cell :

Length : 864 mm / Height : 241 mm / Width : 445 mm
Length : 34" / Height : 9.5" / Width : 17.5"

24 gallon (90 liter) fuel cell :

Length : 635 mm / Height : 346 mm / Width : 426 mm
Length : 25" / Height : 13.62" / Width : 16.75"

26 gallon (98 liter) fuel cell :

Length : 641 mm / Height : 438 mm / Width : 428 mm
Length : 25.25" / Height : 17.25" / Width : 16.85"

32 gallon (121 liter) fuel cell :

Length : 870 mm / Height : 451 mm / Width : 375 mm
Length : 34.25" / Height : 17.75" / Width : 14.75"
